商品の詳細:
|
| プロセス: | 打たれる針 | 親切: | 織られていない |
|---|---|---|---|
| 使用法: | 断熱材、浄水器、地盤補強 | 特徴: | 、耐久力のある酸化抵抗防蝕 |
| 色: | 白 | 材料: | ペット |
| サンプル: | 無料 | ブレイク時の強さ: | 2.5～25.0kN/M以上 |
| CBR破裂強度: | 0.3～4.0kN以上 | 単位面積当たりの品質偏差: | -8%、-7%、-6% |
| 範囲の幅の偏差: | -0.5%M | 破断伸び: | 25%から100% |
| 仕様: | 100~1000g/m2 |
|
Specification
|
100
|
150
|
200
|
300
|
400
|
500
|
600
|
800
|
Remark
|
|
Quality deviation per unit acreage%
|
-6
|
-6
|
-6
|
-5
|
-5
|
-4
|
-4
|
-4
|
|
|
Thickness,mm≥
|
0.8
|
1.2
|
1.6
|
2.2
|
2.8
|
3.4
|
4.2
|
5.5
|
|
|
Width deviation for range,%m
|
-0.5
|
|
|||||||
|
Mightiness at break,KN/m ≥
|
4.5
|
7.5
|
10.0
|
15.0
|
20.5
|
25.0
|
30.0
|
40.0
|
Vertical and horizontal
|
|
Elongation at break,%
|
40-80
|
||||||||
|
CBR bursting strength,KN≥
|
0.8
|
1.4
|
1.8
|
2.6
|
3.5
|
4.7
|
5.5
|
7.0
|
|
|
Effective aperture O90(O95)mm
|
0.07-0.20
|
|
|||||||
|
Vertical osmotic coefficient,cm/s
|
K x(10-1-10-3)
|
K=1.0-9.9
|
|||||||
|
Tearing strength, KN≥
|
0.14
|
0.21
|
0.28
|
0.42
|
0.56
|
0.70
|
0.82
|
1.10
|
Vertical and horizontal
|
Polyester filament nonwoven geotextile is a high-performance needle-punched fabric manufactured from continuous polyester filaments. Unlike staple fiber products, the continuous filament construction eliminates the risk of fiber migration and provides superior mechanical properties. The fabric features high tensile strength, excellent elongation at break, and outstanding resistance to creep under sustained loads. It offers exceptional UV resistance, chemical stability against acids and alkalis, and strong resistance to biological degradation. The uniform pore structure ensures reliable filtration while maintaining high permeability. With excellent dimensional stability and durability, this geotextile maintains its engineering properties throughout long-term service life in demanding environments.
Application
· Highway and Railway Engineering:Reinforcement and separation layers in high-load subgrades, preventing soil mixing and extending pavement service life

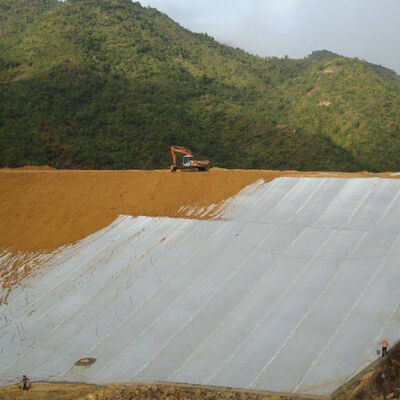

· Landfill Construction: Protective layer for geomembranes, filtration layer in leachate collection systems, and capping applications
· Hydraulic and Water Conservancy Projects: Filtration and drainage in dam construction, canal lining protection, and riverbank reinforcement
· Tunnel and Underground Structures: Protective wrapping for tunnel linings, drainage layer behind retaining walls, and waterproofing system protection
· Mining Applications: Heap leach pad protection, tailings dam filtration, and heap leach pad liner protection
· Sports Field Construction: Base layer stabilization and drainage for athletic fields, golf courses, and stadiums
Specification
100~1000g/m2
Width: max 8 meters
After Sales Service
1.We have different quality products for viarious projects.
2.We also manufacture it as your specification.
3.We will try our best to resovle your problem in construction.
